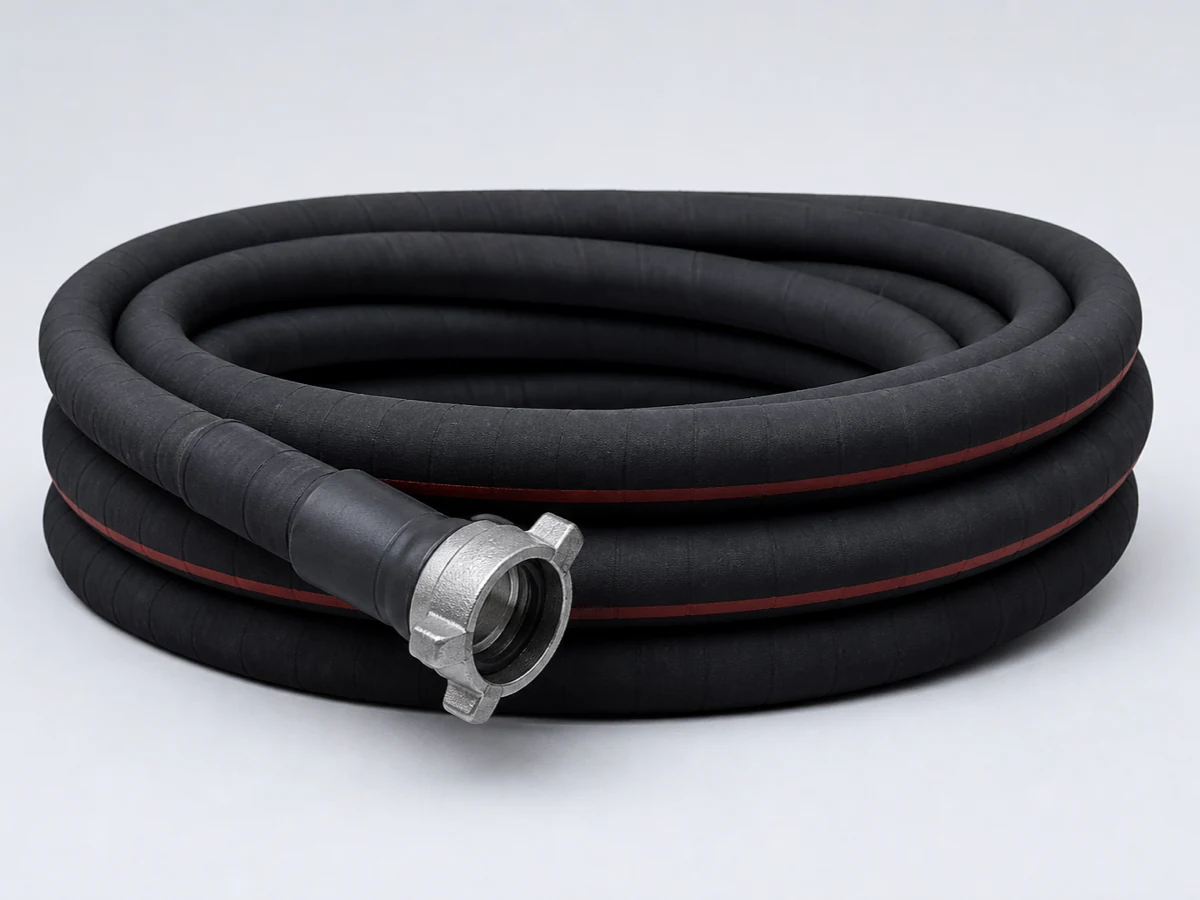

Industrial Water Hose
In short
Textile-braided rubber water hose for industrial supply, irrigation and washdown, 10 bar working pressure.
ISO 9001
Request a Quote →
Technical specifications
Working pressure 10 bar
Burst pressure ≥ 30 bar
Temperature range -20 °C … +80 °C
Inner diameter 13 – 50 mm
Reinforcement textile braid
Cover SBR/EPDM, abrasion resistant
Applications
- Industrial water supply
- Irrigation lines
- Equipment washdown
- Construction site transfer
Construction
- Tube: smooth SBR/EPDM rubber, water resistant
- Reinforcement: high-tenacity textile braid
- Cover: abrasion-resistant SBR/EPDM, weatherproof
Sizes & dimensions
Inner Ø / Outer ØWorking pressure · Weight
13 mm / 21 mm10 bar · 0.30 kg/m
19 mm / 28 mm10 bar · 0.42 kg/m
25 mm / 35 mm10 bar · 0.55 kg/m
50 mm / 62 mm10 bar · 1.05 kg/m
Other diameters and lengths produced on request.
Frequently asked questions
The standard grade is for industrial and process water. For potable water specify our food-grade liner so we supply a compliant compound.
