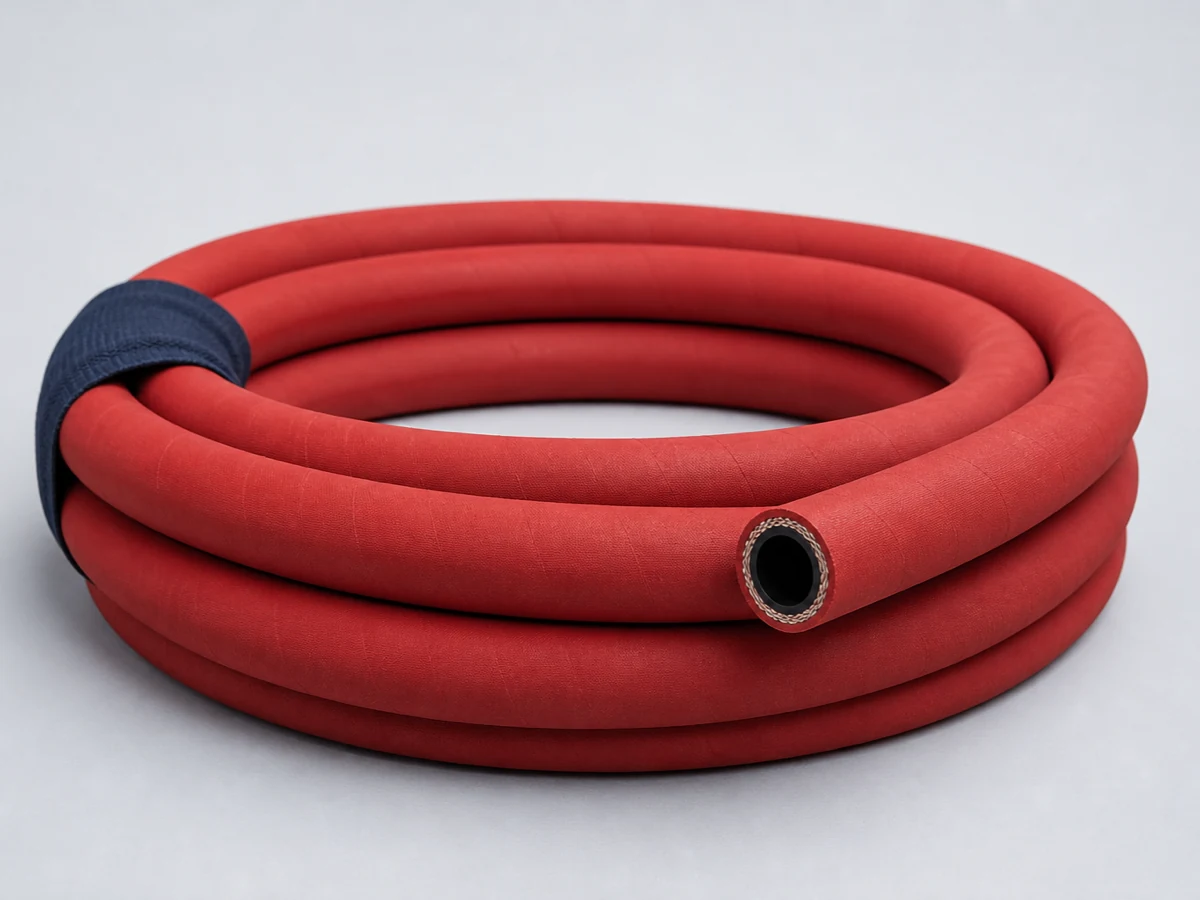

Saturated Steam Hose
In short
EPDM steam hose with steel-wire braid for saturated steam up to +164 C, working pressure 18 bar.
ISO 9001
Request a Quote →
Technical specifications
Working pressure 18 bar
Burst pressure ≥ 180 bar
Temperature range -30 °C … +164 °C
Inner diameter 13 – 25 mm
Reinforcement steel-wire braid
Cover EPDM, heat & ozone resistant
Applications
- Tank and line steam cleaning
- Sterilising and CIP support
- Process steam heating
- Mobile steam stations
Construction
- Tube: heat-resistant EPDM, saturated-steam grade
- Reinforcement: high-tensile steel-wire braid
- Cover: EPDM, heat, ozone and weather resistant
Sizes & dimensions
Inner Ø / Outer ØWorking pressure · Weight
13 mm / 25 mm18 bar · 0.55 kg/m
19 mm / 32 mm18 bar · 0.80 kg/m
25 mm / 39 mm18 bar · 1.05 kg/m
Other diameters and lengths produced on request.
Frequently asked questions
This hose is rated for saturated steam up to +164 C. Always stay within the marked class and use steam-rated bolted clamps with regular inspection.
