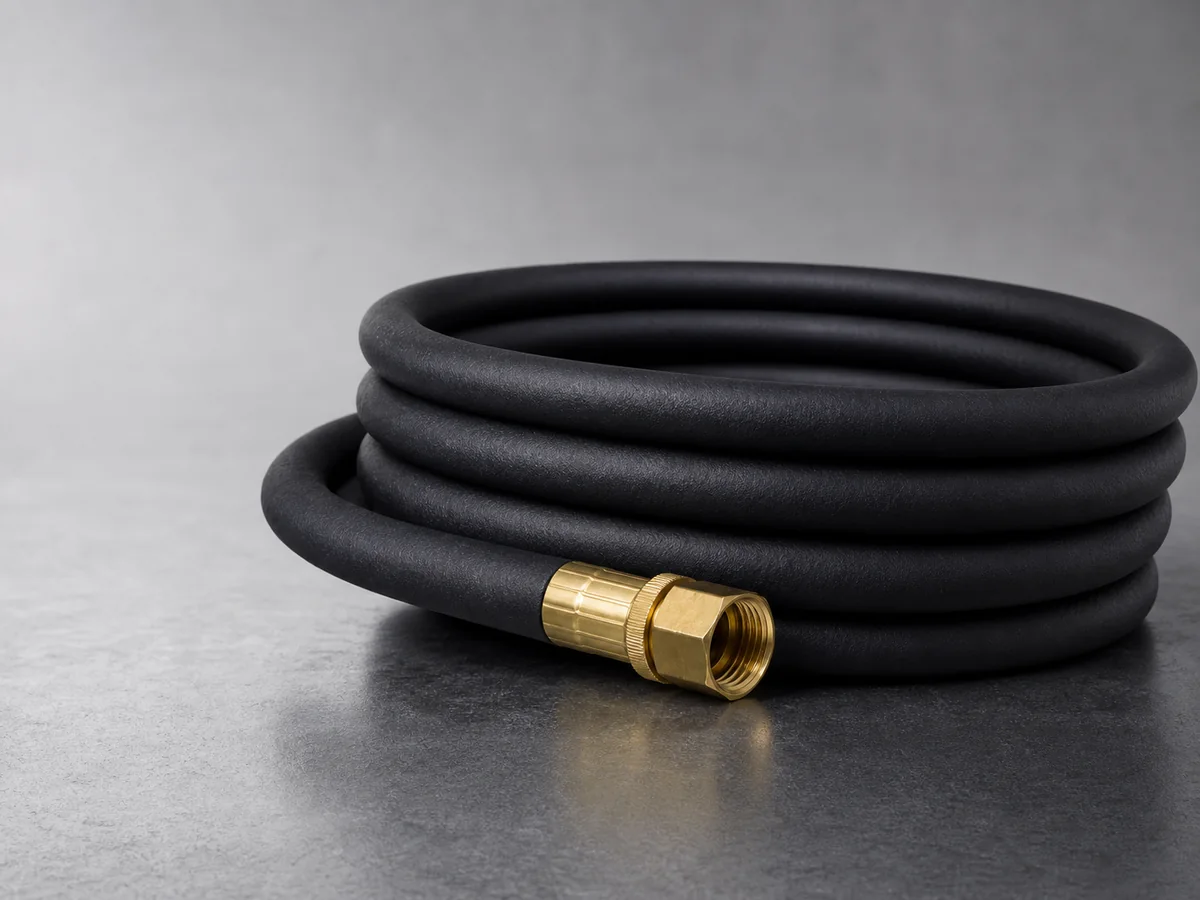

LPG Hose EN 1762 — Type D
In short
Heavy-duty LPG hose for cylinders and gas systems, EN 1762:2018 Type D, working pressure 25 bar.
EN 1762ISO 9001
Request a Quote →
Technical specifications
Working pressure 25 bar
Burst pressure ≥ 100 bar
Temperature range -30 °C … +70 °C
Inner diameter 6 – 25 mm
Reinforcement textile braid
Cover NBR / CR, oil & weather resistant
Standards EN 1762:2018 Type D
Applications
- LPG cylinders
- Autogas systems
- Propane-butane lines
- Industrial burners
Construction
- Inner tube: oil- and LPG-resistant NBR synthetic rubber
- Reinforcement: high-strength textile braid
- Cover: CR (Neoprene), weather, ozone and abrasion resistant
Sizes & dimensions
Inner Ø / Outer ØWorking pressure · Weight
6 mm / 14 mm25 bar · 0.20 kg/m
10 mm / 18 mm25 bar · 0.28 kg/m
13 mm / 22 mm25 bar · 0.35 kg/m
19 mm / 29 mm25 bar · 0.48 kg/m
25 mm / 36 mm25 bar · 0.62 kg/m
Other diameters and lengths produced on request.
Frequently asked questions
It operates safely from -30 °C to +70 °C, suitable for both indoor installations and outdoor seasonal use.
Yes. It is manufactured to EN 1762 Type D with a 25 bar working pressure and a 4:1 safety factor.
Yes. We supply cut-to-length coils and crimped assemblies with brass or steel fittings on request.
