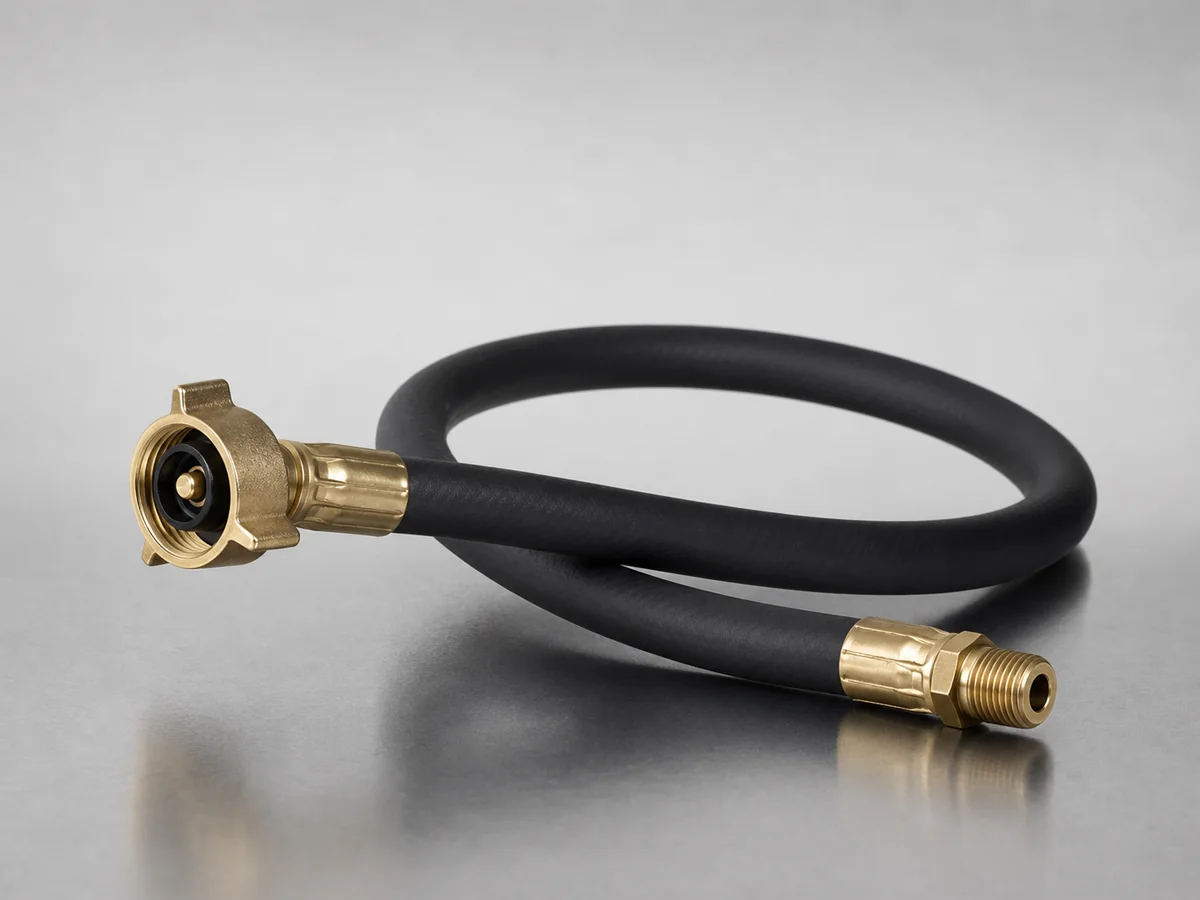

Gas Appliance Hose
In short
Flexible hose for stoves, heaters and gas appliances, resistant to natural gas and LPG.
ENISO 9001
Request a Quote →
Technical specifications
Working pressure 6 – 10 bar
Burst pressure ≥ 30 bar
Temperature range -30 °C … +70 °C
Inner diameter 6 – 13 mm
Reinforcement textile braid
Cover CR, ozone resistant
Standards EN 16436 (option)
Applications
- Stoves & cookers
- Heaters
- LPG cylinders
- Catering equipment
Construction
- Inner tube: gas-resistant CR (Neoprene)
- Reinforcement: textile braid
- Cover: CR, ozone and weather resistant
Sizes & dimensions
Inner Ø / Outer ØWorking pressure · Weight
6 mm / 12 mm10 bar · 0.16 kg/m
8 mm / 15 mm10 bar · 0.22 kg/m
10 mm / 17 mm8 bar · 0.27 kg/m
13 mm / 20 mm6 bar · 0.33 kg/m
Other diameters and lengths produced on request.
Frequently asked questions
It is designed for low-pressure connection of cookers, ovens, heaters and other domestic LPG/natural-gas appliances.
Depending on bore size, the working pressure ranges from 6 to 10 bar, well above typical appliance regulator output.
The CR cover offers excellent ozone, UV and ageing resistance for long service life in kitchen environments.
