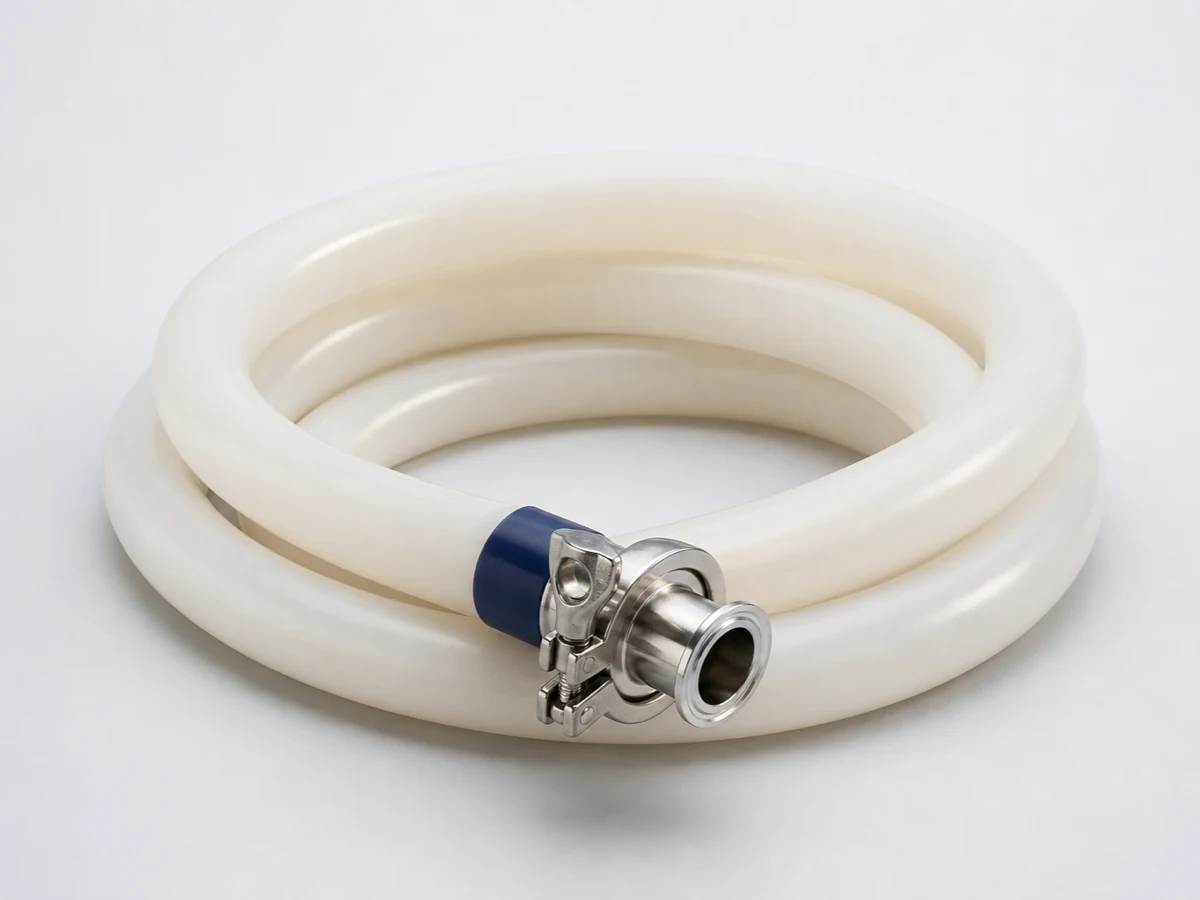

Food-Grade Transfer Hose
In short
White, odourless food-grade hose for drinks, dairy and edible oils, FDA-style compliant, 10 bar.
ISO 9001FDA-style
Request a Quote →
Technical specifications
Working pressure 10 bar
Burst pressure ≥ 30 bar
Temperature range -20 °C … +90 °C
Inner diameter 19 – 50 mm
Reinforcement textile braid
Cover white food-grade rubber, smooth
Applications
- Beverage and dairy transfer
- Edible oil and syrup handling
- Filling and bottling lines
- Dry food and powder dosing
Construction
- Tube: white, odourless, tasteless food-grade rubber
- Reinforcement: high-tenacity textile braid
- Cover: smooth white food-grade rubber, easy to clean
Sizes & dimensions
Inner Ø / Outer ØWorking pressure · Weight
19 mm / 29 mm10 bar · 0.45 kg/m
25 mm / 36 mm10 bar · 0.60 kg/m
38 mm / 50 mm10 bar · 0.95 kg/m
50 mm / 63 mm10 bar · 1.25 kg/m
Other diameters and lengths produced on request.
Frequently asked questions
Yes. The white liner is odourless and tasteless and made to FDA-style food-contact requirements, with smooth bore for easy CIP cleaning and batch traceability.
