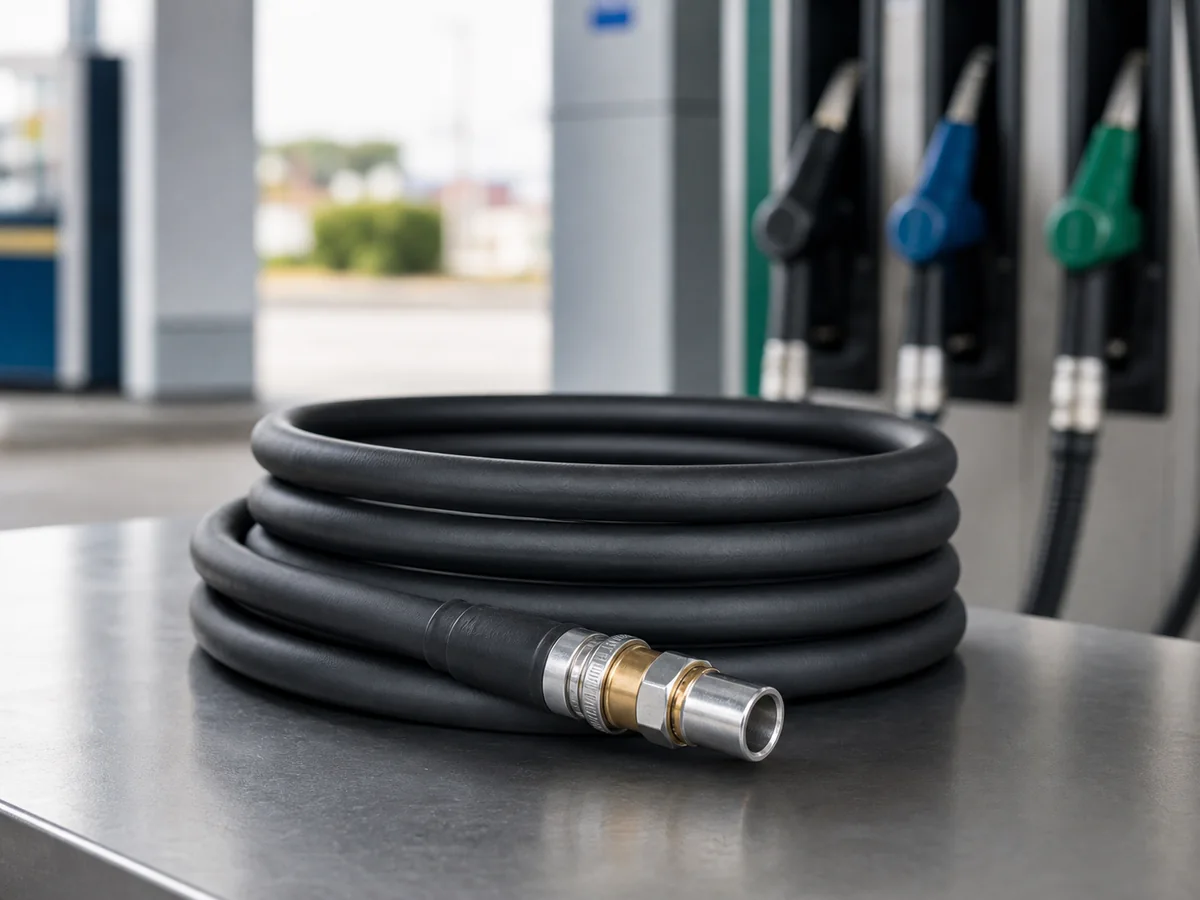

Fuel Dispenser Hose
In short
Antistatic dispenser hose for petrol-station pumps, smooth flow and durable cover.
ENISO 9001
Request a Quote →
Technical specifications
Working pressure 10 – 16 bar
Burst pressure ≥ 50 bar
Temperature range -30 °C … +55 °C
Inner diameter 16 – 25 mm
Reinforcement textile + copper wire (antistatic)
Cover NBR/PVC, fuel resistant
Standards EN 1360 (option)
Applications
- Petrol stations
- Dispenser pumps
- Refuelling islands
Construction
- Inner tube: fuel-resistant NBR/PVC blend, low permeation
- Antistatic element: embedded copper bonding wire
- Reinforcement: high-tenacity textile braid
- Cover: abrasion-, weather- and ozone-resistant cover
Sizes & dimensions
Inner Ø / Outer ØWorking pressure · Weight
16 mm / 24 mm16 bar · 0.42 kg/m
19 mm / 27 mm16 bar · 0.50 kg/m
21 mm / 30 mm12 bar · 0.58 kg/m
25 mm / 34 mm10 bar · 0.68 kg/m
Other diameters and lengths produced on request.
Frequently asked questions
Yes. An embedded copper bonding wire dissipates static charge, meeting forecourt fuel-dispensing safety needs.
It is suitable for petrol, diesel and E10 blends at service-station dispensing pressures.
Yes. We supply crimped assemblies in custom lengths with electrical continuity tested across the fittings.
