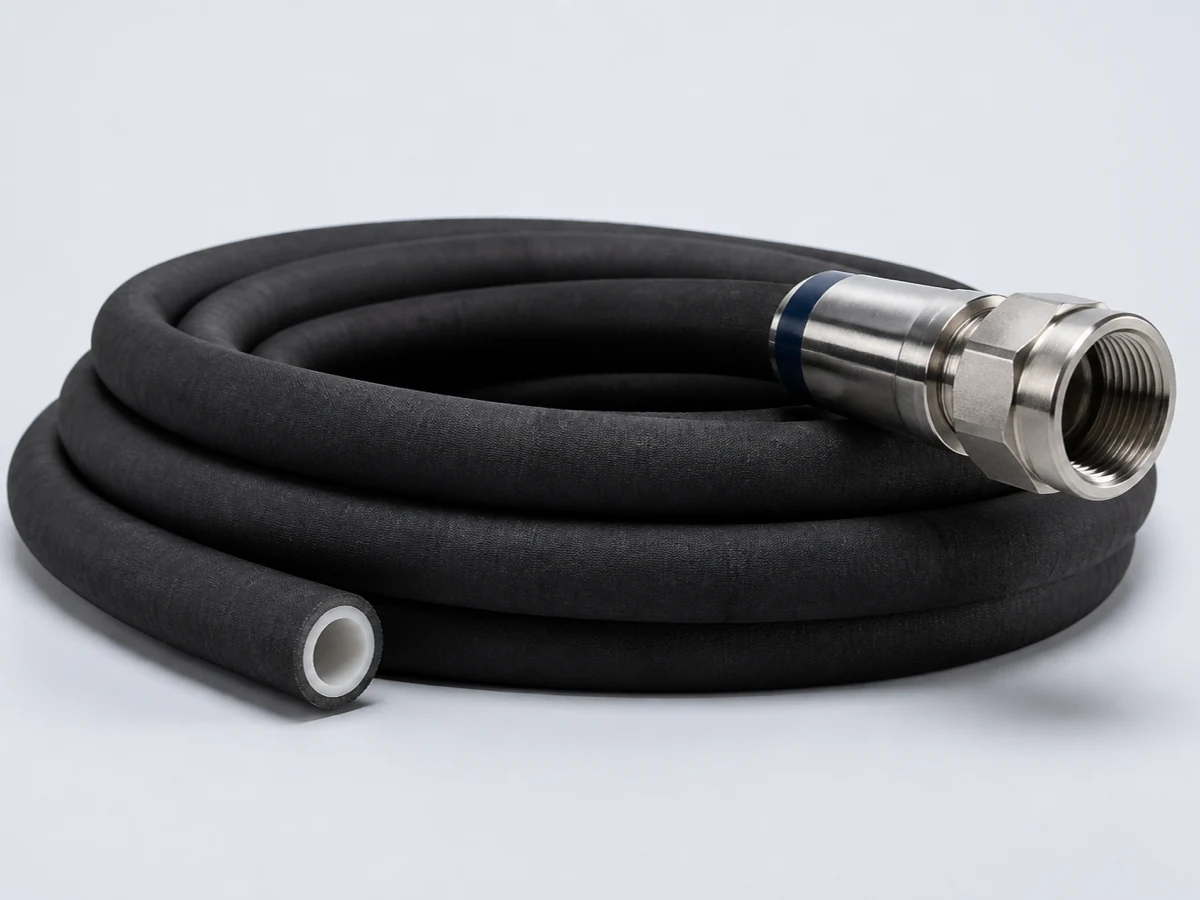

Chemical Transfer Hose
In short
UHMWPE-lined chemical hose for acids, alkalis and solvents, EPDM cover, suction and 16 bar delivery.
ISO 9001
Request a Quote →
Technical specifications
Working pressure 16 bar
Burst pressure ≥ 64 bar
Temperature range -30 °C … +100 °C
Inner diameter 19 – 50 mm
Reinforcement textile ply + steel-wire helix
Cover EPDM, ozone & chemical resistant
Applications
- Acid and alkali transfer
- Solvent and reagent handling
- Drum filling and tanker loading
- Plant process lines
Construction
- Tube: chemically inert UHMWPE liner
- Reinforcement: textile plies plus steel-wire helix
- Cover: EPDM, ozone, weather and chemical resistant
Sizes & dimensions
Inner Ø / Outer ØWorking pressure · Weight
19 mm / 31 mm16 bar · 0.65 kg/m
25 mm / 38 mm16 bar · 0.85 kg/m
38 mm / 52 mm14 bar · 1.25 kg/m
50 mm / 66 mm12 bar · 1.70 kg/m
Other diameters and lengths produced on request.
Frequently asked questions
Send us the chemical name, concentration and temperature and we check it against our UHMWPE resistance chart before confirming the build and fittings.
